How to cap holes in Softimage XSI v 1.5 .

Written by: Javier Garcia , javiergps@eresmas.com



There is a way to cap holes in a polygon mesh: (at the end of the tut there is a script that makes this auto)

1.This is a polygonal extrusion without capping.

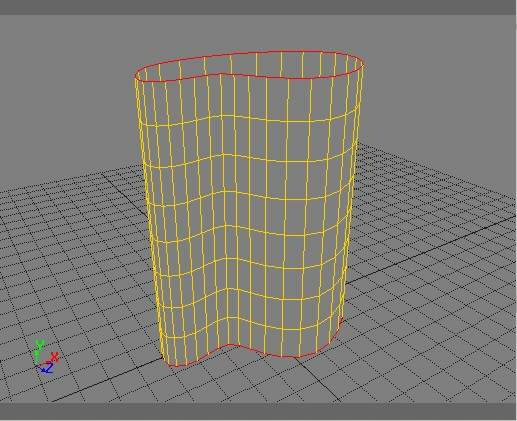

2.To cap the extrusion we have to select the surrounding edges of the hole,it could be done for several holes at the same time.Here, I have selected the bottom and the upper edges where my caps will be.

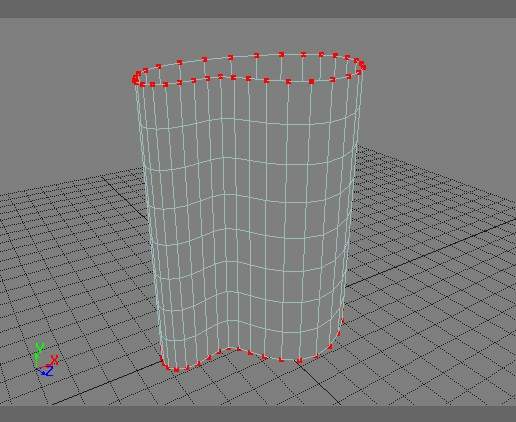

3.Then press CTRL+D to duplicate that edges, and from the "SELECT" menu use "Select Adjacent / Points" to convert the edge selection to points.

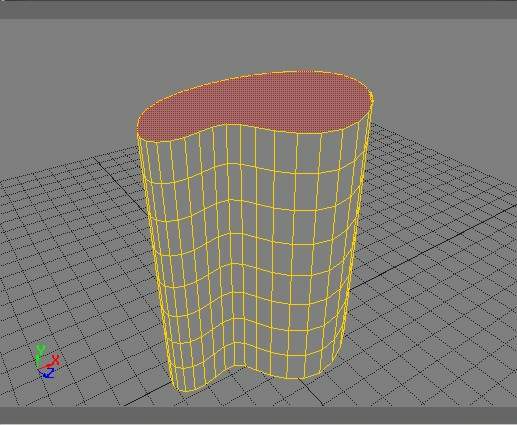

4.Now use "Modify / Poly. Mesh / Dissolve Components" to create the caps.And Thats All now our polygonal object have two pretty caps.

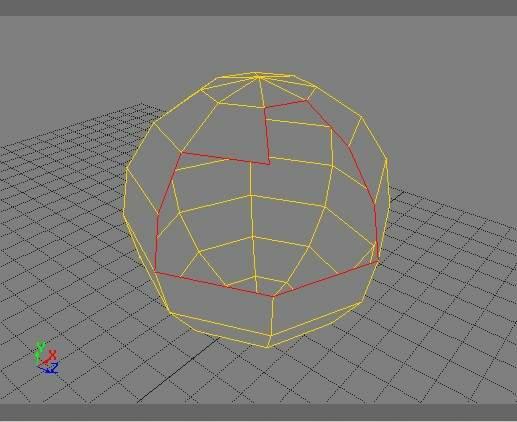

5.Try this in something like this and then apply a mesh subdivision , it works pretty well.



Download Cap_Holes Script.Make the edge selection and run the script .
Or use the XSI Netview to do a "drag and drop" install from here:Cap_Holes Script
